Accelrys Draw

With the same look-and-feel as ISIS/Draw, Accelrys Draw delivers speed and efficiency to your chemical drawing experience.

Why upgrade from what you're already using?

  • Improved creation and presentation of chemical structures, biologics and chemical aspects of biologics
  • Additional features such as multiple undo, name-to-structure, structure-to-name conversion, molecule templates, ChemDraw file support, InChI and Canonical SMILES support
  • An all-purpose drawing tool that enables fast and easy structure and reaction drawing
  • Easy-to-use Rgroup functionality
  • Multiple free add-ins to support desk top searching, file viewing, reaction stoichiometry calculations, calculate as you draw physicochemical properties, Markush structure enumeration, ACD lab integration and much more...

Accelrys Draw can easily swap out existing ISIS/Draw or ChemDraw applications.

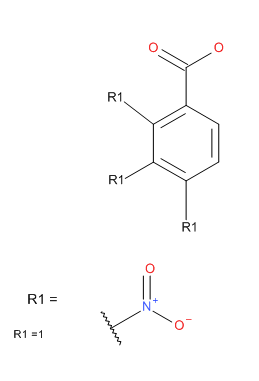

To Draw a Markush Query

Click here for more details about Rgroups, an example, and a detailed procedure how to draw a Markush query.

To draw a Markush query:

  1. Draw the root structure. Use the other drawing tools.

  2. Add Rgroup atom to the root structure.

    1. Click the "Create Markush structure or query"v tool.
    2. Click the atom that you want to replace.
    3. Select an Rgroup from the palette.
  3. Draw the Rgroup members with the chemical drawing tools. Step 4 will always add an additional bond. Remove the CN bond of teh default NO2 query.

  4. Add Rgroup members.

    1. Click the "Create Markush structure or query" tool.
    2. Click the fragment that you want to add.
    3. Drag and drop the fragment onto the Rgroup definition (Rn=). Try toselect the whole group. Wait until you have a blue boy around the group.
  5. (Optional) Move attachment points.

    1. Click the Markush Query tool.
    2. Click the asterisk of the attachment point.
    3. Drag and drop the asterisk onto the atom that you want.
  6. (Optional) Change the occurence. If an Rgroup atom appears at more than one instance (or place) in the root structure, you see "R1 = n (where n is defined as the number of occurences), R2 >0, etc." appear automatically next to the Rgroup definition (Rn =). For each such Rgroup, you need to specify the frequency (occurrence), the number of times that a member of this Rgroup must appear in retrieved structures. To change the frequency:
    1. Select the Rgroup Query Tool.
    2. Click the occurence definition (R1 = n), located next to the Rgroup definition (Rn =).
    3. Select a number from the dialog box that is displayed.
    4. Click OK to accept your selection. The frequency definition is updated with your selection.

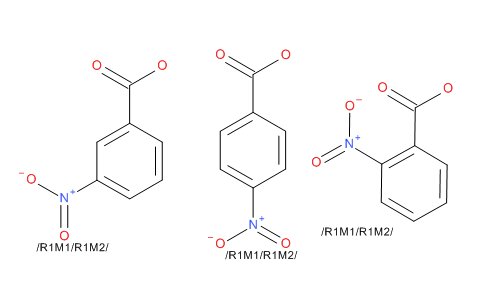

Generic  Structure Enumerator

The enumerator works against structures defined using the Rgroup tool in Accelrys Draw. In this mode you specify a scaffold with a number of Rgroup labels, then to add fragments to the Rgroup identifiers. The Add-in will calculate the complete set of structures that the Rgroups define.

You can also define a generic region using the Sgroup tool. Draw the basic structure and using the Sgroup tool, drag a pair of brackets around a region that is repeated in the substance. From the dropdown select ‘generic’ for the bracket type, then select apply and exit from the dialog. Right click on one of the brackets and select the Attach Data option. In the dialog enter REPEATRANGE into the Field description box, and then enter the range in the Data box; leave the Search Operator set to none; the Tag field is optional. A contiguous range is required in the Data box, for example 3-6.

A structure can contain both Rgroup definitions and Sgroup definitions, but they cannot overlap or be nested.

You have the option to enumerate on to Accelrys Draw’s canvas, into an SDfile, or into an Isentris for Excel compatible spreadsheet.

Accelrys Draw - Add-ins

Accelrys Draw's simple, programmable interface enables developers to create custom add-ins or actions and drop them in as tools, buttons, or menu items. Structure converters, calculators, and property predictors can be added and tailored to the needs of the individual or organization.

The sample software code accompanying this readme.txt file ("Sample Code") is Copyright © 2011, Accelrys Technologies, Inc., all rights reserved. Permission is hereby granted to licensed Accelrys Draw users ("Licensed Users"), to download, copy, and use the Sample Code, as an add-on to their licensed copy of Accelrys Draw only. In addition, Licensed Users may modify the Sample Code and redistribute it, provided the modified Sample Code is usable only with Accelrys Draw, and the readme.txt file accompanies the distribution. The Sample Code, and any and all modifications thereto, are provided at no fee and strictly as is, without warranty by, or liability to Accelrys, its licensors, affiliated companies, agents or contractors.

Note: Accelrys Draw Structure Resolver requires Accelrys Draw 3.3 or later, and Microsoft .NET Framework 3.5.

Download the Add-ins
